Provide various steering system solutions
High pressure design:
1.fits a wide range of front axle loads
2.less driver effort
3.more comfortable steering
4.more efficiency at constant weight
5.reduced energy consumption
High temperature design:
1.no additional coolers necessary
2.better packaging due to missing coolers
3.wider range of operation cases
4.fits to Euro 5/6 emission standards

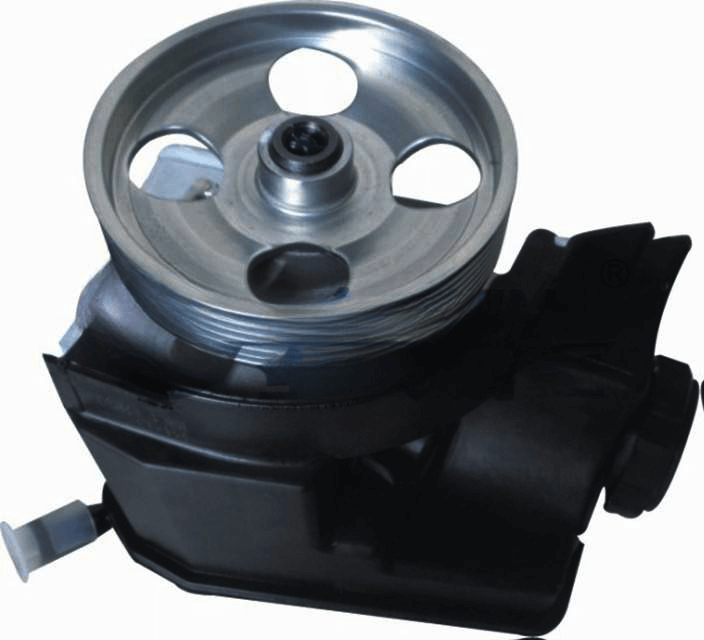

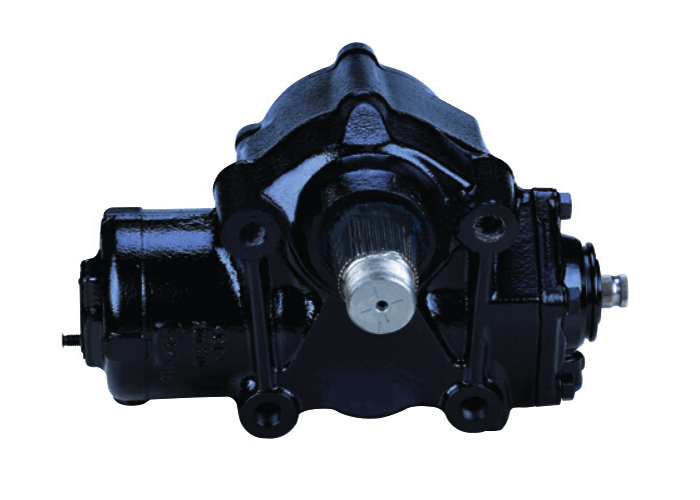

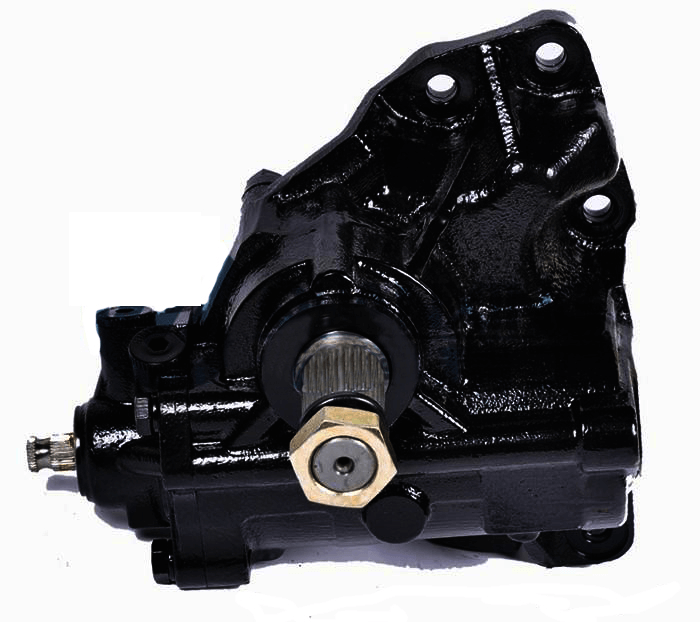

| OEM REF No.: BENZ | OEM REF No.: ISUZU 898110200/455-01047 | OEM REF No.: PEUGEOT |
| Applicable Front A×le Load 9000kg | Applicable Front A×le Load 3500kg | Nominal displacement 11.3ml/r |
| Power Cylinder Diameter 118.5mm | Power Cylinder Diameter 85mm | Maximum pressure 80bar |
| Rated Work Pressure 15MPa | Rated Work Pressure 10MPa | Highest rotational speed 500-7000r/min |
| Recommend Pump Flow Rate 20L/min | Recommend Pump Flow Rate 10L/min | Controlled flow rate 7.0L/min |
| Circles 6.77 | Circles 5.6 | Fuel feed hole Φ13.5 |
| Output Angle ±47° | Output Angle ±46° | Fuel discharge hole M16x1.5-6H |
| Oil Inlet Hole M16×1.5 | Oil Inlet Hole | Direction of rotation Right |
| Oil Outlet Hole M16×1.5 | Oil Outlet Hole | |
| Input Shaft Spline 25.6×79 | Input Shaft Spline | |
| Output Shaft Spline 52.94×48 | Output Shaft Spline |
